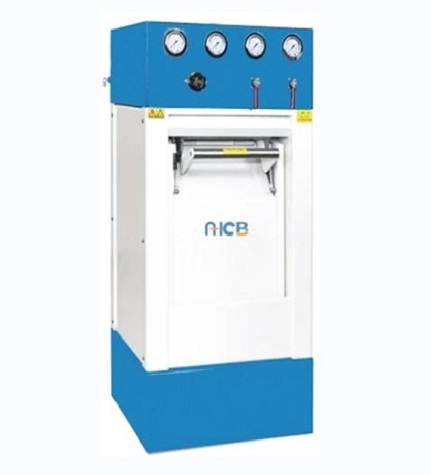

品 | AH10 3BC-100 | |||
介质Media | 可呼吸空气Breathable air | |||
呼吸空气质量Breathable Air Quality | 符合EN12021标准Meets EN12021 Standard | |||
非气量Exhaust Volume | 100 L/min(6m³/h | |||
工作压力Working Pressur | 225bar/330bar | |||
噪声Noise | 95 dB | 97 dB | ||
重量Weigh | 46 Kg | 44 kg | ||
E力Power Source | 单相电杠 Singl | 三相电机 Trinle 5e1110t0 | Gasg | 汽油机 |
功率Power | 2.2K | 22KW | 4.2KW | |
压缩机参数Compressor Parameters | ||||
级数Level Numbers | ||||
di一级缸径First Level Cylinder Diamete | 60mm | |||
di二级缸径Second Level Cylinder Diamet | 28 mm | |||
di三级缸径Third Stage Cylinder Diamete | 12 mm | |||
行程Stroke | 24mn | |||
转速RPM | 2300 r/min | |||
di一级排气压力First Stage Exhaust | 0.6-0.7 Mpa wm | |||
di一级安全阀设定 | 1 Mpa VW | |||
dStase Exhaust Pressure | 4-6 Mpa | |||
econd Level Safety Valve Set | 8 Mpa | |||
润滑方式Lubrication Mode | 飞溅润滑Splash Lubrication | |||
油量Amount of Oil | 360 ml | |||
zui高进气温度Maximum Intake | 5-45℃ | |||
进气温度Intake Air Temperatur | 环境温度+20℃ Ambient Temperature +20℃ | |||
呼吸机zui大倾角 ation Angle of Ventilato | 5° | |||
电机防护等级Motor Protection Class | IP55 | |||
长mmLength mm | 700 | 770 | ||
宽mm Width mm | 380 | 420 | ||
高mmHeight mm | 420 | 420 |
